Ford Ranger 1999 Fuse Box Info
Passenger compartment fuse box location:
The fuse panel is located on the left side of the dashboard, facing the driver's door. Pull the panel cover outward to access the fuses.
Engine compartment fuse box location:
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse Box Diagram | Layout

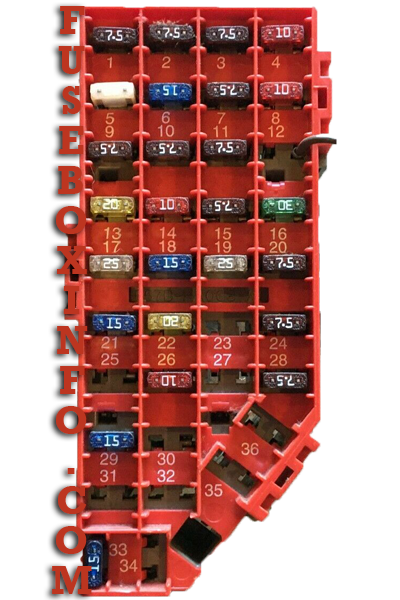

Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Power Mirror Switch |
| 2 | 7.5A | Blower Motor Relay, PAD Module, Air Bag Diagnostic Monitor |
| 3 | 7.5A | Left Stop/Turn Trailer Tow Connector |
| 4 | 10A | Left Headlamp |
| 5 | 10A | Data Link Connector (DLC) |
| 6 | - | Not Used |
| 7 | 7.5A | Right Stop/Turn Trailer Tow Connector |
| 8 | 10A | Right Headlamp, Fog Lamp Relay |
| 9 | 7.5A | Brake Pedal Position Switch |
| 10 | 7.5A | Speed Control Servo/Amplifier Assembly, Generic Electronic Module (GEM), Shift Lock Actuator, Blend Door Actuator, A/C-Heater Assembly, Turn Signals |
| 11 | 7.5A | Instrument Cluster, Daytime Running Lights (DRL), RABS Resistor |
| 12 | - | Not used |
| 13 | 20A | Brake Pedal Position Switch |
| 14 | 20A or 10A |
20A: If equipped with Rear Anti-Lock Brake System (RABS) Module. 10A: If equipped with 4 Wheel Anti-Lock Brake System (4WABS) Module, 4WABS Main Relay |
| 15 | 7.5A | Air Bag Indicator Lamp, Alternator Indicator Lamp |
| 16 | 30A | Windshield Wiper Motor, Wiper Hi-Lo Relay, Wiper Run/Park Relay |
| 17 | 25A | Cigar Lighter |
| 18 | 15A | Driver’s Unlock Relay, All-Unlock Relay, All-Lock Relay |
| 19 | 25A | PCM Power Diode |
| 20 | 7.5A | RAP Module, Generic Electronic Module (GEM), Radio |
| 21 | 15A | Flasher (Hazard) |
| 22 | 20A | Auxiliary Power Socket |
| 23 | - | Not used |
| 24 | 7.5A | Clutch Pedal Position (CPP) switch, Starter Interrupt Relay, Anti-Theft |
| 25 | 7.5A | Generic Electronic Module (GEM), Instrument Cluster |
| 26 | 10A | Battery Saver Relay, Electronic Shift Relay, Interior Lamp Relay, Power Window Relay, Electronic Shift Control Module, Dome/Map Lamp, GEM |
| 27 | 15A | Electric Shift, Backup Lamps, Daytime Running Lamps (DRL), Transmission Control Switch, Pulse Vacuum Hub Lock |
| 28 | 7.5A | Generic Electronic Module (GEM), Radio |
| 29 | 15A | Radio |
| 30 | 10A | RABS Test Connector |
| 31 | - | Not used |
| 32 | - | Not used |
| 33 | 15A | Headlamps, Daytime Running Lamps (DRL) Module, Instrument Cluster |
| 34 | - | Not used |
| 35 | 15A | Park Lamp/Trailer Tow Relay |
| 36 | - | Not used |

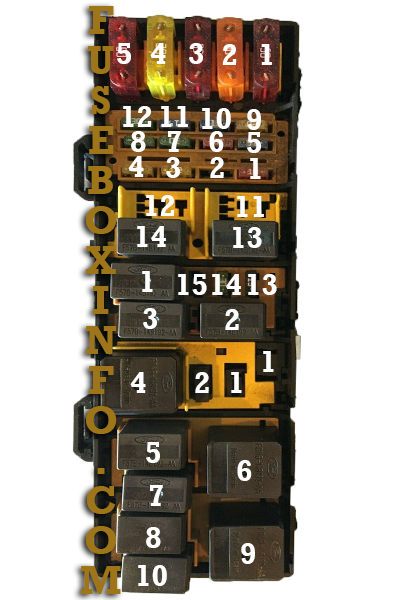

Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 50A** | I/P Fuse Panel |
| 2 | 40A** | Blower Motor Relay |
| 3 | 50A** | 4 Wheel Anti-Lock Brake System (4WABS) Module |
| 4 | 20A** | Power Windows |
| 5 | 50A** | Ignition Switch, Starter Relay |
| 1 | 10A* | A/C Relay |
| 2 | - | Not Used |
| 3 | 20A* | Electronic Shift Relay and Electronic Shift Control Module |
| 4 | 15A* | Fog Lamp and Daytime Running Lamps |
| 5 | - | Not Used |
| 6 | 10A* | Powertrain Control Module |
| 7 | 30A* | 4 Wheel Anti-lock Brake System (4WABS) Module |
| 8 | 30A* | PCM Relay |
| 9 | 20A* | Fuel Pump Relay and RAP Module |
| 10 | 15A* | Horn Relay |
| 11 | 15A* | Parklamps Relay and Main Light Switch |
| 12 | 30A* | Main Light Switch and Multifunction Switch |
| 13 | 15A* | Heated Oxygen Sensor, EGR Vacuum Regulator, EVR Solenoid, Camshaft Position Sensor (CMP), Canister Vent Solenoid |
| 14 | 30A* | Generator Voltage Regulator |
| 15 | - | Not Used |
| 1 | - | Wiper Park Relay |
| 2 | - | A/C Relay |
| 3 | - | Wiper Hi/Lo Relay |
| 4 | - | PCM Power Relay |
| 5 | - | Fuel Pump Relay |
| 6 | - | Starter Relay |
| 7 | - | Horn Relay |
| 8 | - | Fog Lamp Control Relay |
| 9 | - | Blower Motor Relay |
| 10 | - | Foglamp Isolation Relay |
| 11 | - | Not used |
| 12 | - | Not used |
| 13 | - | Park Lamp/Trailer Tow Relay |
| 14 | - | Washer Pump Relay |
| 1 | - | RABS Resistor |
| 1 | - | RABS Diode |
| 2 | - | Electronic Engine Controls Diode |
|
* Mini Fuses ** Maxi Fuses |
