Yamaha Road Star Midnight Star 2001 Fuse Box Info

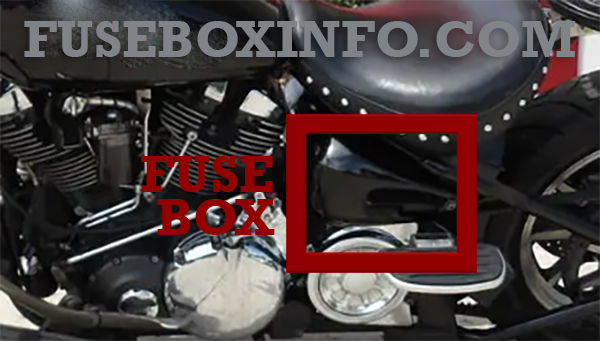

Fuse box location:
The fuse box is located behind panel.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Signaling system fuse |
| 2 | 15A | Ignition fuse |
| 3 | 15A | Headlight fuse |
| 4 | 10A | Carburetor heater fuse |
| 5 | 5A | Odometer fuse |
| 6 | - | Spare fuse (x3) |
The main fuse (30A) and spare main fuse are located near to the fuse box.
