Yamaha Raider 2008 Fuse Box Info

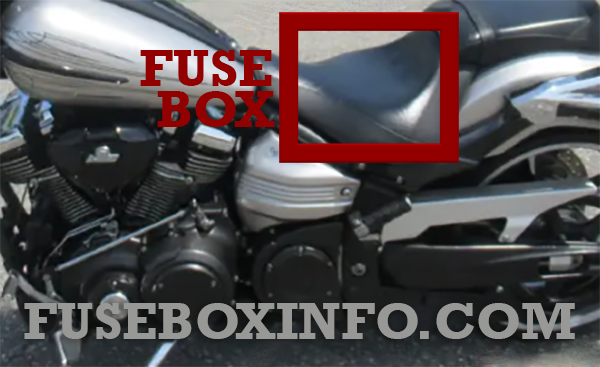

Fuse box location:
The fuse box is located under the seat.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | 3A | Auxiliary DC connector fuse |
| 2 | 10A | Signaling system fuse |
| 3 | 25A | Ignition fuse |
| 4 | 7.5A | Backup fuse (for odometer and clock) |
| 5 | 20A | Headlight fuse |
| 6 | 7.5A | Taillight fuse |
| 7 | - | Spare fuse |
The main fuse (50A) is located under the seat, next to battery.
The fuel injection system fuse (15A) and fuel injection system spare fuse, is located under the seat, next to fuse box.
