Lotus Emira 2024 Fuse Box Info
Passenger compartment fuse box location:

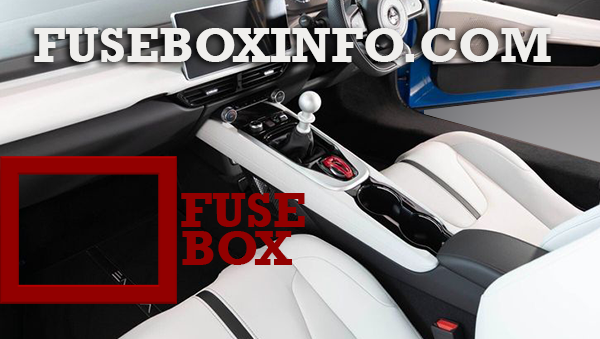

The fuse box 1 is located in the passenger footwell.

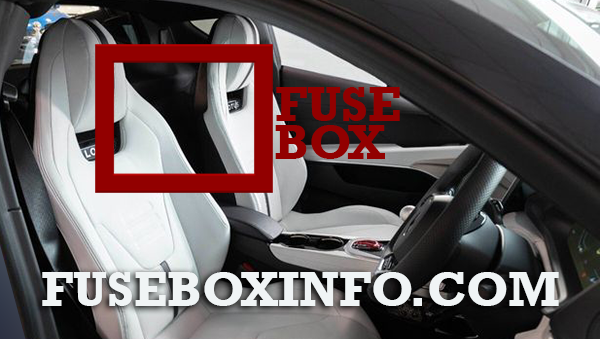

The fuse box 2 is located behind the left-hand rear quarter trim panel.
Front compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box 1:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Spare |
| 2 | - | Spare |
| 3 | - | Spare |
| 4 | - | Spare |
| 5 | 30A | Wiper motor module |
| 6 | - | Spare |
| 7 | 25A | Audio booster (premium specification) |
| 8 | 25A | Audio modul |
| 9 | 20A | Seat module - left |
| 10 | 10A | Infotainment head unit |
| 11 | 20A | Door module - front left |
| 12 | 20A | Seat module - right |
| 13 | 20A | Door module - front right |
| 14 | 5A | Active safety domain master |
| 15 | 7.5A | Steering column lock |
| 16 | 10A | Diagnostic socket (ODB I) |
| 17 | 5A | Steering wheel module |
| 18 | 5A | Radio frequency antenna |
| 19 | 5A | Relay coil supply |
| 20 | 5A | Centre console switch module |
| 21 | 5A | Brake pedal sensor |
| 22 | 7.5A | Climate control module |
| 23 | 5A | Centre stack display |
| 24 | 5A | Interior motion sensor |
| 25 | 5A | Telematics module |
| 26 | 5A | Driver information module |
| 27 | 5A | Start switch, gear selector module, parking brake switch |
| 28 | - | Spare |
| 29 | 5A | Ventilation flap actuator, defroster flap actuator |
| 30 | 5A | Silent alarm module |
| 31 | 5A | Keyless vehicle module (Emira 4-cylinder) |
| 32 | 5A | Digital keyless antenna module (Emira 4-cylinder) |
| 33 | - | Spare |
| 34 | 10A | Engine Bay EFCM_2 Relay |
| 40 | - | Spare |
| 41 | - | Spare |
| 42 | - | Spare |
| 50 | 5A | Auxiliary water pump |
| 51 | - | Spare |
| 52 | - | Spare |
| 53 | 15A | Power outlet - passenger compartment |
| 54 | 10A | Charging port - rear view mirror, USB charging port - floor console right |
| 55 | - | Spare |
| 56 | - | Spare |
| 57 | - | Spare |
| 58 | - | Spare |
| 59 | - | Spare |
| 60 | - | Spare |
| 61 | - | Spare |
| 62 | - | Spare |
| 63 | 5A | Electronic toll collection module |
| 64 | - | Spare |
| 65 | 5A | Supplementary restraint system |
| 66 | 5A | Front radar module, forward looking, camera heater |
| 67 | - | Spare |
| 68 | - | Spare |
| 69 | - | Spare |
| 70 | - | Spare |
| 71 | - | Spare |
| 80 | 5A | Sun sensor |
| 81 | 7.5A | USB connection |
| 82 | 7.5A | Rain/light sensor module, vanity mirror illumination, overhead console, glove box illumination, glove box switch, interior rear view mirror module |
| 83 | 5A | Side obstacle detection - left, side obstacle detection - right |
| 84 | - | Spare |
| 85 | - | Spare |
| 86 | - | Spare |
| 87 | - | Spare |
| 90 | - | Spare |
| 91 | - | Spare |
Passenger compartment fuse box 2:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Pump electronic module, powertrain control module (Emira 4-cylinder) |
| 2 | 5A | Engine control module, electronic gear selector module (Emira 4-cylinder) |
| 3 | 5A | Air conditioning compressor solenoid (Emira 4-cylinder) |
| 4 | - | Spare |
| 5 | 10A | Engine control module (Emira V6) |
| 5 | 15A | Engine control module, Injectors 1,2,3 + Oil level and temperature sensor (Emira 4-cylinder) |
| 6 | 15A | Spark plug, ignition coil, capacitor filter - left, capacitor filter - right (Emira V6) |
| 6 | 15A | Engine control module (Emira 4-cylinder) |
| 7 | 7.5A | Injector (Emira V6) |
| 7 | 25A | Engine control module (Emira 4-cylinder) |
| 8 | 15A | Pump - water cooled charge air cooler (Emira V6) |
| 8 | 25A | Pump fuel leakage control DMTL (Emira 4-cylinder) |
| 9 | 7.5A | Solenoid variable valve timing VVT inlet and exhaust B, evap purge valve, Solenoid variable valve timing VVT inlet and outlet, canister close valve (Emira V6) |
| 10 | 10A | Oxygen sensor 1 - left-hand front, oxygen sensor 3 - linear right-hand front, oxygen sensor 4 diagnostic right-hand rear, oxygen sensor rear (Emira V6) |
| 11 | 5A | Relay coil supply (Emira V6) |
| 12 | 5A | Engine control module (Emira V6) |
| 12 | 15A | Powertrain control module PCM (Emira 4-cylinder) |
| 13 | 5A | Electronic gear selection module (Emira V6 automatic transmission) |
| 13 | 5A | Exhaust actuator (Emira) |
| 14 | 5A | Alternator control module (Emira V6) |
| 14 | 7.5A | Transmission oil cooler valve (Emira 4-cylinder) |
| 15 | 20A | Pump water cooled charge air cooler (Emira 4-cylinder) |
| 16 | 7.5A | Air conditioning compressor solenoid (Emira V6) |
| 16 | 10A | Control valve engine oil cooler (Emira 4-cylinder) |
| 17 | 5A | Water pump relay (Emira 4-cylinder) |
| 18 | 5A | Vehicle gateway module (Emira 4-cylinder) |
| 19 | - | Spare |
| 20 | 5A | Relay coil supply (Emira & Emira V6) |
| 21 | 5A | Alternator control module (Emira V6) |
| 22 | 5A | Engine control module (Emira & Emira V6) |
| 23 | 5A | Powertrain control module (Emira 4-cylinder) |
| 24 | 5A | Keyless vehicle module (Emira 4-cylinder) |
| 25 | - | Spare |
| 26 | 5A | Air conditioning clutch relay (Emira V6) |
| 27 | - | Spare |
| 28 | 15A | Oil cooler pump relay (Emira V6 automatic transmission) |
| 29 | 20A | Fuel pump relay (Emira V6) |
| 30 | - | Spare |
| 31 | - | Spare |
| 32 | 40A | Central electronic module |
| 33 | - | Spare |
| 34 | 40A | Central electronic module |
| 35 | - | Spare |
| 36 | 30A | Pump electronic module (Emira 4-cylinder) |
| 37 | - | Spare |
| 38 | - | Spare |
| 39 | 30A | Window washer pump front relay |
| 40 | - | Spare |
| 41 | 25A | Rear defroster relay |
| 42 | - | Spare |
| 43 | - | Spare |
| 44 | 30A | Starter relay |
| 45 | - | Spare |
| 46 | 5A | Gear shift actuator (Emira V6 automatic transmission) |
| 47 | - | Spare |
| 48 | - | Spare |
| 49 | - | Spare |
| 50 | - | Spare |
| 51 | 30A | Transmission control module (Emira V6 automatic transmission) |
| 52 | - | Spare |
| 53 | - | Spare |
| 54 | - | Spare |
| 55 | - | Spare |
| 56 | - | Spare |
| M1 | 80A | Transmission control module (Emira 4-cylinder) |
| M2 | 60A | Water pump relay (Emira 4-cylinder) |
| M3 | - | Spare |
| M4 | - | Spare |
| M5 | - | Spare |
Front compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Spare |
| 2 | - | Spare |
| 3 | - | Spare |
| 4 | - | Spare |
| 5 | - | Spare |
| 6 | - | Spare |
| 7 | - | Spare |
| 8 | - | Spare |
| 9 | - | Spare |
| 10 | - | Spare |
| 11 | - | Spare |
| 12 | 20A | Headlamp unit - right-hand |
| 13 | 20A | Headlamp unit - left-hand |
| 14 | 5A | Supplementary restraint system, occupancy weight sensor passenger, belt tension sensor front right |
| 15 | 5A | Exhaust actuator |
| 16 | 5A | Electro hydraulic power assisted steering (Emira 4-cylinder) |
| 17 | - | Spare |
| 18 | 5A | Vehicle Dynamics Domain Master - VDDM (brake module) |
| 19 | 5A | Seat occupant weight sensor |
| 20 | 5A | Relay - coil supply |
| 21 | 5A | Battery backed-up sounder |
| 22 | 5A | Recirculation flap actuator, Temperature flap actuator left side |
| 23 | - | Spare |
| 24 | - | Spare |
| 25 | - | Spare |
| 26 | - | Spare |
| 27 | - | Spare |
| 28 | - | Spare |
| 29 | 20A | Horn relay |
| 30 | 30A | Low temperature radiator fan relay (Emira V6 automatic transmission) |
| 31 | - | Spare |
| 32 | 40A | Control unit blower motor, Temp flap actuator left side, Recirculation flap actuator |
| 33 | 40A | Vehicle Dynamics Domain Master - VDDM (brake module) |
| 34 | 40A | Vehicle Dynamics Domain Master - VDDM (brake module) |
| 35 | - | Spare |
| 36 | 30A | Headlamp relay |
| 37 | - | Spare |
| 38 | - | Spare |
| 39 | - | Spare |
| 40 | - | Spare |
| 41 | - | Spare |
| 42 | - | Spare |
| 43 | - | Spare |
| 44 | - | Spare |
| 45 | - | Spare |
| 46 | - | Spare |
| 47 | - | Spare |
| 48 | - | Spare |
| 49 | - | Spare |
| 50 | - | Spare |
| 51 | - | Spare |
| 52 | - | Spare |
| 53 | - | Spare |
| 54 | - | Spare |
| 55 | 20A | Headlamp unit - left-hand |
| 56 | 20A | Headlamp unit - right-hand |
| M1 | 80A | Fuse box supply |
| M2 | - | Spare |
| M3 | 70A | Fan control module |
| M4 | - | Spare |
| M5 | 100A | Electro hydraulic power assisted steering (Emira 4-cylinder) |
Battery fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 15A | Battery monitoring sensor |
| 2 | 400A | Starter motor |
| 3 | 200A | Rear junction box |
| 4 | 250A | Front junction box |
