Lincoln Mark VIII 1998 Fuse Box Info
Passenger compartment fuse box location:

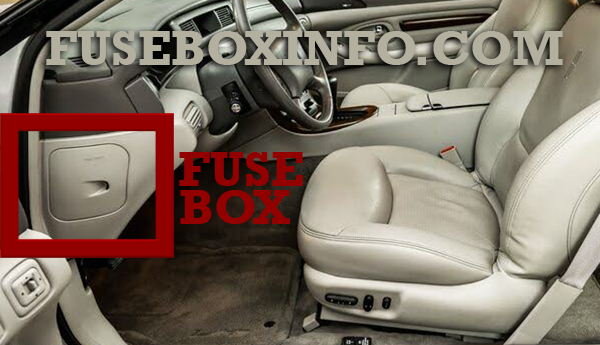

The fuse box is located on the left hand side of the instrument panel facing the driver’s side door.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Steering Column/Ignition/Lighting Module (Brake Lamps, Climate Control Blower Motor, Hazard Lamps, Speed Control) |
| 2 | 10A | Radio, Cellular Phone |
| 3 | - | Not Used |
| 4 | 10A | Radio, Cellular Phone, Message Center, Compass, Day/Night Mirror, Passenger Seat Module |
| 5 | 10A | Day/Night Sensor, Cluster (Oil Pressure, Brake Warning, Speed Control), I/P Warning Indicator Display, Steering Column/Ignition/Lighting Module (Logic Input) |
| 6 | 10A | Starter Motor Relay |
| 7 | 15A | Steering Column/Ignition/Lighting Module (Left Turn Lamps) |
| 8 | - | Not Used |
| 9 | 10A | Blower Motor Relay, Electronic Automatic Temperature Control Module |
| 10 | 30A | Windshield Wipers |
| 11 | 10A | Coil Drivers, Radio Noise Capacitors, PCM Relay |
| 12 | 10A | Passenger’s Power and Heated Seats |
| 13 | 15A | Steering Column/Ignition/Lighting Module (Right Turn Lamps) |
| 14 | 30A | Cigar Lighter, Cellular Phone, Power Point |
| 15 | 10A | Air Bag Diagnostic Monitor |
| 16 | 20A | Moonroof |
| 17 | 10A | Instrument Cluster (Charging Indicator) |
| 18 | - | Not Used |
| 19 | 10A | Steering Column/Ignition/Lighting Module (Left Low-Beam Headlamp) |
| 20 | 10A | Message Center, Instrument Cluster, Electronic Automatic Temperature Control Module |
| 21 | 10A | EVAC/Fill Connector, Anti-Lock Brake Control Module |
| 22 | - | Not Used |
| 23 | - | Not Used |
| 24 | - | Not Used |
| 25 | 10A | Steering Column/Ignition/Lighting Module (Right Low-Beam Headlamp) |
| 26 | 15A | Steering Column/Ignition/Lighting Module (Courtesy Lighting, Demand Lighting) |
| 27 | - | Not Used |
| 28 | 10A | Instrument Cluster, I/P Warning Indicator Display, Air Suspension/EVO Steering Module, Rear Window Defrost Module, Steering Wheel Position Sensor, Transmission Control Switch |
| 29 | - | Not Used |
| 30 | 10A | Heated Mirrors |
| 31 | 10A | Steering Column/Ignition/Lighting Module (Park Lamps) |
| 32 | 15A | Brake On/Off Switch, Brake Pressure Switch |
| 33 | - | Not Used |
| 34 | 15A | Heated Seats, Backup Lamps, Speed Control, Daytime Running Lamps, A/C Cycling Switch, Digital Transmission Range Sensor, Intake Manifold Runner Control Module |
| 35 | 10A | Driver’s Power and Heated Seats |
| 36 | - | Not Used |
| 37 | - | Not Used |
| 38 | 10A | Data Link Connector |
| 39 | - | Not Used |
| 40 | - | Not Used |
| 41 | 10A | Keyless Entry, Power Door Locks, Power Mirror Switch, Memory/Recall Switch, Driver’s Door Module |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 10A | Powertrain Control Module (Keep-Alive Memory) |
| 2 | 15A | High Beam Relay, Daytime Running Lamps Module |
| 3 | 10A | Powertrain Control Module (EAM Pump Motor-Monitor) |
| 4 | 15A | Air Suspension, Electronically Variable Orifice Power Steering |
| 5 | 30A | Trunk Lid Relay, Fuel Filler Door Release |
| 6 | 10A | Air Bag Module |
| 7 | - | Not Used |
| 8 | 20A | Horn Relay |
| 9 | - | Not Used |
| 10 | 20A | Radio Amplifier, CD Changer |
| 11 | - | Not Used |
| 12 | 15A | Steering Column/Ignition/Lighting Module (Tilt/Telescoping Steering Column Motors, Mirror Lamps, Brake Shift Interlock, High Beam Indicator, Anti-Theft Indicator) |
| 13 | 60A | Air Suspension |
| 14 | 30A | Delayed Accessory Power Relay #1, I/P Fuses (4, 10, 16) |
| 15 | 30A | Powertrain Control Module, PCM Power Relay, Engine Compartment Fuse 1 |
| 16 | 20A | Fuel Pump Relay, Fuel Pump Module |
| 17 | 30A | Electronic Air Management, Engine Compartment Fuse 3 |
| 18 | 30A | Passenger Seat Module, Passenger Lumbar, I/P Fuse 12 |
| 19 | 30A | Driver Seat Module, Driver Lumbar, I/P Fuse 35 |
| 20 | 30A | Anti-Lock Brake Control Module |
| 21 | 20A | Anti-Lock Brake Control Module, EVAC/Fill Connector |
| 22 | 60A | I/P Fuses (1, 7, 13, 19, 25, 31) |
| 23 | 40A | Variable Load Control Module |
| 24 | 40A | Rear Window Defrost Control, I/P Fuse 30 |
| 25 | 60A | I/P Fuses (2, 14, 20, 26, 32, 38), Engine Compartment Fuse 5 |
| 26 | 20A | Ignition Switch, I/P Fuses (5, 9, 11, 15, 17, 21) |
| 27 | 30A | Starter Motor Solenoid, Ignition Switch, I/P Fuses (6, 28, 34) |
| 28 | 30A | Delayed Accessory Power Relay #2, I/P Fuse 41 |
| 29 | 40A | Blower Motor Relay |
