Hyundai Creta 2025 Fuse Box Info

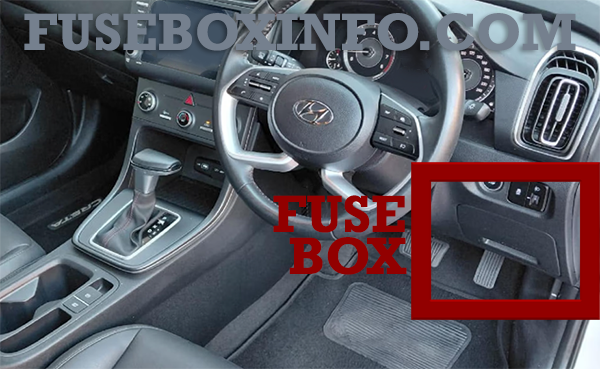

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover (LHD). The fuse box is located at the right side of the steering column at the bottom of the instrument panel, behind the cover (RHD).

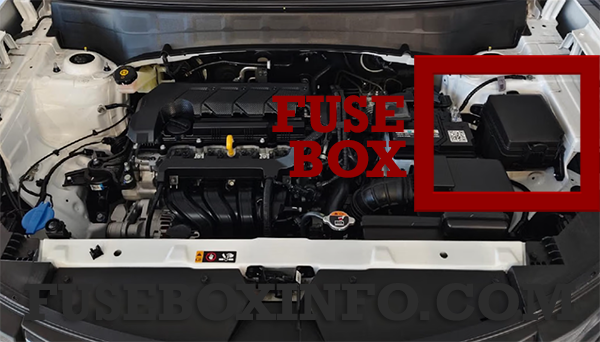

Engine compartment fuse box location:
Fuse Box Diagram | Layout

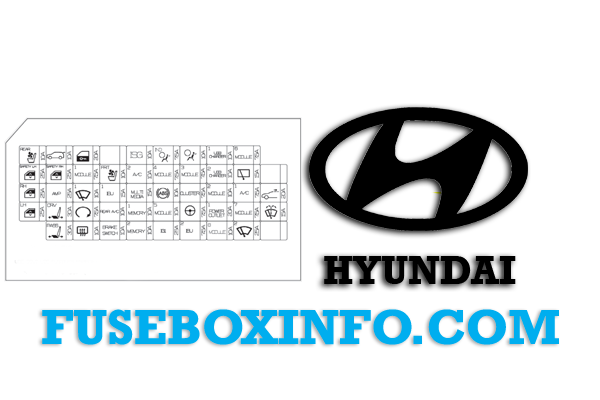

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| REAR AIR VENTILATION |
10A | Rear Seat RH Control Module |
| TAILGATE | 10A | Tailgate Relay |
| DOOR LOCK | 20A | Door Lock/Unlock Relay |
| ISG | 10A | Instrument Cluster, Front A/C Control Module, Front Smart Phone Wireless Charger, Audio, A/V & Navigation Head Unit, ADAS Unit (Parking) |
| AIRBAG IND. | 7.5A | Instrument Cluster |
| AIRBAG | 15A | SRS Control Module |
| USB CHARGER1 | 10A | Luggage USB Charger RH, Rear USB Charger |
| MODULE6 | 7.5A | IBU, IAU |
| SAFETY P/WINDOW LH |
25A | Driver Safety Power Window Module (LHD) |
| SAFETY P/WINDOW RH |
25A | Driver Safety Power Window Module (RHD) |
| MODULE 1 | 7.5A | Data Link Connector, Rain Sensor, Driver/passenger Power Outside Mirror, Driver IMS Control Module, Outside Mirror Folding/Unfolding Relay |
| FRONT AIR VENTILATION |
10A | Front Air Ventilation Seat Control Module |
| A/C2 | 10A | Front A/C Control Module, Blower Resistor, Blower Motor, E/R Junction Block (RLY. 15) |
| MODULE4 | 7.5A | Front Radar, Rear Corner Radar LH/RH, Dosing Control Module, ESP Control Switch, Crash Pad Switch, Electric Parking Brake Switch, Console Switch RH, Drive Switch |
| MODULE3 | 7.5A | IAU, A/T Shift Lever |
| USB CHARGER2 |
10A | Front USB Charger, Front Smart Phone Wireless USB Charger |
| REAR WIPER | 15A | Rear Wiper Motor, E/R Junction Block (RLY. 17) |
| P/WINDOW RH | 25A | Power Window Main Switch, Passenger Power Window Switch(LHD) |
| AMP | 25A | AMP |
| FRONT WIPER1 | 10A | IBU, ECM/PCM, Front Wiper Motor, E/R Junction Block (RLY. 9) |
| IBU1 | 15A | IBU, IAU, Driver Door NFC Module |
| MULTIMEDIA | 15A | Audio, A/V & Navigation Head Unit |
| ABS | 10A | ABS Control Module, ESP Control Module |
| CLUSTER | 7.5A | Instrument Cluster |
| MODULE2 | 10A | AMP, Luggage USB Charger LH, Power Outside Mirror Switch, IBU, Audio, A/V & Navigation Head Unit, ADAS Unit (Parking), Emergency Call (E-Call) Unit, IAU, Console Keyboard Unit (Audio), Front A/C Control Module, Low DC-DC Converter, E/R Junction Block (RLY. 11-1) |
| A/C1 | 7.5A | Front A/C Control Module, E/R Junction Block (RLY. 15), PM Sensor |
| SUNROOF | 20A | Sunroof Glass Motor |
| P/WINDOW LH | 25A | Power Window Main Switch, Passenger Power Window Switch(LHD) |
| DRIVER P/SEAT | 30A | Driver Power Seat Switch, Driver IMS Control Module |
| START | 7.5A | ECM/PCM, IBU, E/R Junction Block (RLY. 2), Transaxle Range Switch, Ignition Lock & Clutch Switch |
| REAR A/C | 10A | E/R Junction Block (RLY. 11-2) |
| MEMORY1 | 10A | Emergency Call (E-Call) Unit, Built-In Camera, ADAS Unit (Parking) |
| MODULE5 | 10A | Audio, A/V & Navigation Head Unit, Front A/C Control Module, Head Lamp LH/RH, AMP, Front Air Ventilation Seat Control Module, Driver IMS Control Module, Rear Seat LH Control Module |
| MDPS | 7.5A | MDPS Unit |
| P/OUTLET 1 | 20A | Front Power Outlet #1 |
| MODULE7 | 7.5A | E/R Junction Block (RLY. 11-2), Ionizer |
| WASHER | 15A | Multifunction Switch |
| PASSENGER P/SEAT |
30A | Passenger Power Seat Module, Passenger Seat Manual Switch |
| REAR DEFOGGER |
10A | Front A/C Control Module, Driver/Passenger Power Outside Mirror, ECM/PCM |
| BRAKE SWITCH | 10A | IBU, Stop Lamp Switch |
| MEMORY2 | 10A | Instrument Cluster, Front A/C Control Module, Low DC-DC Converter |
| IG1 | 25A | E/R Junction Block (Fuse - F33/F34-1/F34-2/F35) |
| IBU2 | 7.5A | IBU |
| MODULE8 | 10A | ADAS Unit (Parking), DBC & SVM Switch, Console Switch RH |
| FRONT WIPER2 | 25A | Front Wiper Motor, E/R Junction Block (RLY. 9) |

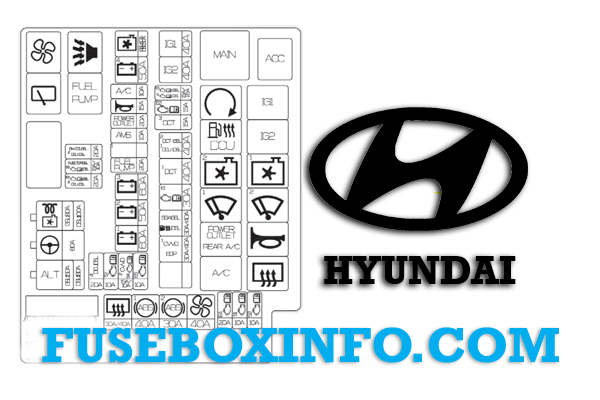

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| E61 (RLY. 1) | - | Main Relay |
| E62 (RLY. 2) | - | ACC Relay |
| E63 (RLY. 3) | - | Start Relay |
| E64 (RLY. 4) | - | IG1 Relay |
| E65-1 (RLY. 5-1) |
- | Fuel Filter Heater Relay |
| E65-2 (RLY. 5-2) |
- | DCU Relay |
| E66 (RLY. 6) | - | IG2 Relay |
| E67 (RLY. 7) | - | Cooling Fan #2 Relay |
| E68 (RLY. 8) | - | Cooling Fan #1 Relay |
| E69 (RLY. 9) | - | Wiper High Relay |
| E70 (RLY. 10) | - | Wiper Low Relay |
| E71-1 (RLY. 11-1) | - | Power Outlet Relay |
| E71-2 (RLY. 11-2) | - | Rear A/C Relay |
| E72 (RLY. 12) | - | Horn Relay |
| E73 (RLY. 13) | - | A/C Relay |
| E74 (RLY. 14) | - | Rear Defogger Relay |
| E75 (RLY. 15) | - | Blower Relay |
| E76 (RLY. 16) | - | Burglar Alarm Horn Relay |
| E77 (RLY. 17) | - | Rear Wiper Relay |
| E78 (RLY. 18) | - | Fuel Pump Relay |
| ALT | 150A | Alternator, Fuse - F4/F5/F6/F7 |
| MDPS | 80A | MDPS Unit |
| C/FAN | 80A | Cooling Fan Controller |
| GLOW | 100A | Glow Relay Unit |
| REAR DEFOGGER |
30A/40A | RLY. 14 (Rear Defogger Relay) |
| ABS1 | 40A | ABS Control Module, ESP Control Module |
| ABS2 | 30A | ABS Control Module, ESP Control Module |
| BLOWER | 40A | RLY. 15 (Blower Relay) |
| ECU4 | 20A | ECM |
| SENSOR1 | 10A | RLY. 18 (Fuel Pump Relay), Inlet Metering Valve |
| SENSOR2 | 10A | RLY. 13/RLY. 8/RLY. 7/RLY. 5-1 (A/C Relay/Cooling Fan #2 Relay/Cooling Fan #1 Relay/Fuel Filter Heater Relay), Stop Lamp Switch, Camshaft Position Sensor, Lambda Sensor (Up/Down) |
| CVVD1 | 40A | CVVD Actuator |
| EOP | 30A | Electronic Oil Pump |
| SGA | 40A | Smart Gear Actuator |
| FUEL FILTER HEATER |
30A | RLY. 5-1 (Fuel Filter Heater Relay) |
| ECU1 | 30A | RLY. 1 (Main Relay) |
| DCT1 | 40A | TCM |
| DCT2 | 40A | TCM |
| DCU1 | 40A | RLY. 5-2 (DCU Relay) |
| DCT3 | 15A | TCM |
| ECU2 | 15A | ECM |
| ECU5 | 15A | ECM/PCM |
| ECU5 | 15A | TCM |
| IG2 | 40A | RLY. 3/RLY. 6 (Start Relay/IG2 Relay), Ignition Switch |
| IG1 | 40A | RLY. 2/RLY. 4 (ACC Relay/IG1 Relay), Ignition Switch |
| B+1 | 60A | ICU Junction Block (IPS1/IPS4/IPS8/IPS9/IPS10/IPS12) |
| B+2 | 50A | ICU Junction Block (IPS2/IPS5/IPS6/IPS7/IPS11) |
| B+3 | 60A | ICU Junction Block (Long Term Load Auto Cut Relay, Fuse - F3/F12/F13/F23/F33/F42) |
| FUEL PUMP | 20A | RLY. 18 (Fuel Pump Relay) |
| AMS | 10A | Battery Sensor |
| POWER OUTLET |
20A | RLY. 11-1 (Power Outlet Relay) |
| HORN | 15A | RLY. 12/RLY. 16 (Horn Relay/Burglar Alarm Horn Relay) |
| A/C | 10A | RLY. 13 (A/C Relay) |
| B+4 | 50A | ICU Junction Block (Power Window Main Relay Unit) |
| C/FAN | 40A | RLY. 7/RLY. 8 (Cooling Fan #2 Relay/Cooling Fan #1 Relay) |
| ECU6 | 10A | ECM/PCM |
| CVVD2 | 10A | CVVD Actuator |
| SENSOR4 | 10A | Glow Relay Unit, Fuel Filter Warning Sensor |
| ECU6 | 10A | TCM, Transaxle Range Switch |
| ECU3 | 20A | PCM |
| DCU4 | 20A | Dosing Control Module |
| DCU3 | 20A | Dosing Control Module |
| INJECTOR | 15A | Injector #1/#2/#3/#4 |
| SENSOR3 | 10A | EGR Cooling Bypass Solenoid Valve, PM Sensor, Mass Air Flow Sensor, Electronic VGT Actuator, Front/Rear Nox Sensor |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4 |
| DCU2 | 20A | Dosing Control Module |
