Hyundai Staria 2025 Fuse Box Info

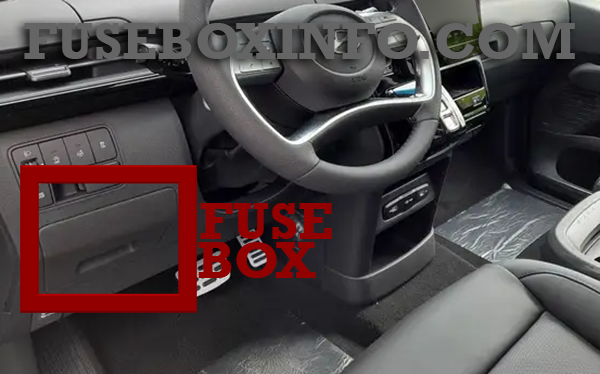

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover (LHD). The fuse box is located at the right side of the steering column at the bottom of the instrument panel, behind the cover (RHD).

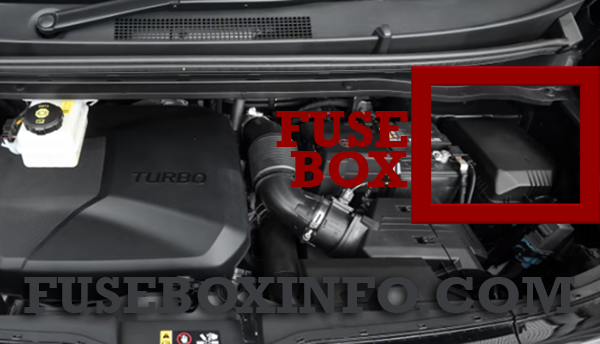

Engine compartment fuse box location:
Fuse Box Diagram | Layout

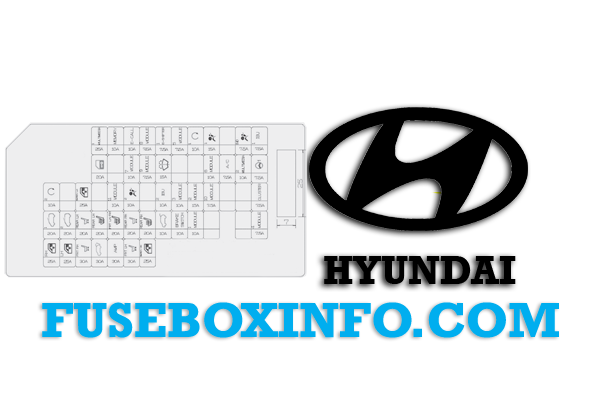

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| START2 | 10A | Ignition Switch |
| SUN ROOF1 | 20A | Front Sunroof Motor |
| P/WINDOW RH |
25A | Power Window Main Switch, Passenger Power Window Switch |
| SUNROOF2 | 20A | Rear Sunroof Motor |
| P/WINDOW LH |
25A | Power Window Main Switch, Passenger Power Window Switch |
| SAFETY WINDOW LH |
25A | Driver/passenger Safety Power Window Module |
| P/SEAT REAR LH |
20A | Rear Seat LH Connector |
| P/SEAT FRT RH |
30A | Passenger Seat Connector |
| MULTI MEDIA1 |
25A | [With ISG] Low DC-DC Converter [W/O ISG] Audio, A/V & Navigation Head Unit |
| DOOR LOCK | 20A | Relay Box (Center Door Lock/Unlock Relay, Rear LH Door Lock/Unlock Relay) |
| S/HEATER REAR LH |
20A | Rear Seat LH Connector |
| POWER TAILGATE |
30A | Power Tailgate Module |
| MEMORY | 10A | Rear A/C Control Module, Low DC-DC Converter, Instrument Cluster, Front A/C Control Panel, Front A/C Control Module, Folding/Unfolding Mirrors Relay |
| MODULE11 | 10A | Power Tailgate & Power Sliding Door Switch, Key Solenoid, Data Link Connector, Hazard Switch, ATM Shift Lever, Rear Seat LH/RH Connector, Power Tailgate Module |
| S/HEATER FRT LH/RH |
20A | Driver Seat Connector |
| AMP | 30A | [With ISG] Low DC-DC Converter [W/O ISG] AMP |
| E-CALL | 10A | Emergency Call (E-call) Module |
| MODULE7 | 10A | Hazard Switch, BSSW Unit |
| AIRBAG2 | 10A | SRS Control Module |
| P/SEAT REAR RH |
20A | Rear Seat RH Connector |
| P/SEAT FRT LH |
30A | Driver Seat Connector |
| MODULE8 | 7.5A | Diesel Filter Heater |
| MODULE9 | 7.5A | IBU |
| S/HEATER REAR RH |
20A | Rear Seat RH Connector |
| SAFETY WINDOW RH |
25A | Driver/Passenger Safety Power Window Module |
| E-SHIFTER1 | 7.5A | Electronic ATM Shift Lever, SCU |
| WASHER | 15A | Multifunction Switch |
| IBU2 | 10A | IBU |
| TAILGATE | 10A | Tailgate Release Relay |
| MODULE5 | 7.5A | Dosing Control Module, AWD ECU, Clutch & Ignition Lock Switch, Centre Facia Switch, Crash Pad Switch, IBU, Front View Camera, Rear Corner Radar LH/RH |
| MODULE3 | 10A | Emergency Call (E-CALL) Module, IBU, Audio, Keyboard, AMP A/V & Navigation Head Unit |
| BRAKE SWITCH |
10A | Stop Lamp Switch, IBU |
| START1 | 10A | [With Smart Key] IBU, ECM, Transaxle Range Switch [W/O Smart Key] Ignition Switch, B/Alarm Relay |
| MODULE2 | 15A | Front USB Charger, Passenger Seat Connector, USB Charger LH/RH, Luggage USB Charger LH/RH, Luggage USB Charger LH/RH (3RD) |
| MODULE1 | 10A | Driver Power Outside Mirror Switch, Low DC-DC Converter, AMP |
| AIRBAG1 | 15A | SRS Control Module |
| MODULE6 | 10A | Keyboard, A/V & Navigation Head Unit, Data Link Connector, Front A/C Control Module, Front A/C Control Panel, Audio, Emergency Call (E-call) Module, Electro Chromic Mirror, Crash Pad Switch, ATM Shift Lever Indicator, Wireless Charger, Low DC-DC Converter |
| MODULE10 | 7.5A | Rear Seat LH/RH Connector, AC Inverter Outlet, AC Inverter Module, E/R Junction Block (RLY.4 / RLY.8) |
| A/C | 7.5A | Front A/C Control Panel, Front/Rear A/C Control Module, Sub Junction Block (RLY.6), E/R Junction Block (RLY.3 / RLY.13) |
| AIRBAG IND |
7.5A | Instrument Cluster |
| MULTI MEDIA2 |
10A | Front A/C Control Panel, Front/Rear A/C Control Module, Wireless Charger, Instrument Cluster, Rear Corner Radar LH/RH |
| IBU1 | 7.5A | IBU |
| MDPS1 | 7.5A | EPS Unit |
| CLUSTER | 7.5A | Instrument Cluster |
| MODULE4 | 7.5A | Stop Lamp Switch |

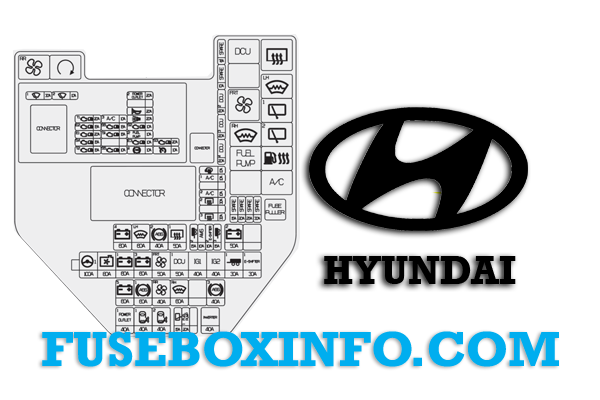

Engine compartment fuse box:

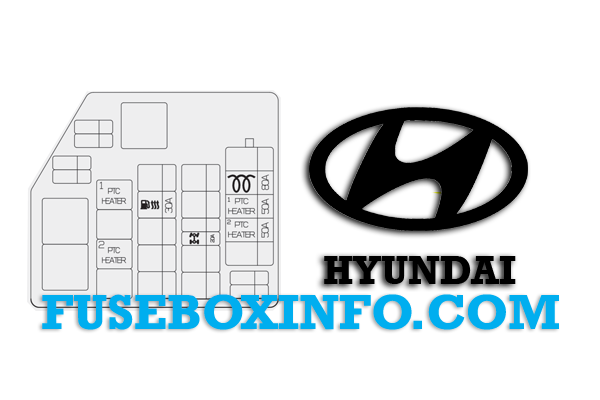

Engine compartment fuse box (Diesel):
| Fuse/Relay Name | Rating | Functions |
| MDPS1 | 100A | MDPS Unit |
| COOLING FAN |
80A | Cooling Fan Motor |
| B+1 | 60A | ICU Junction Block (IPS1/IPS2/IPS3/IPS4) |
| B+3 | 60A | ICU Junction Block (Power Window Relay, Fuse - F1/F2/F5/F8/F9/F13/F14/F18/F19/F24/F29) |
| FRONT BLOWER |
50A | RLY. 3 (Front Blower Relay) |
| DCU1 | 50A | [D4HE] RLY. 1 (DCU Relay) |
| IG1 | 40A | PCB Block (ACC Relay, IG1 Relay) |
| IG2 | 40A | PCB Block (IG2 Relay) |
| TRAILER1 | 30A | Trailer Connector |
| E-SHIFTER1 | 30A | With SBW] SCU |
| B+4 | 60A | ICU Junction Block (Long Term Load Latch Relay, Fuse - F7/F11/F17/F22/F23/F28/F32/F33/F37) |
| W/S HEATED GLASS LH |
60A | RLY. 8 (Windshield Heated Glass LH Relay) |
| ABS2 | 40A | ESP Control Module |
| REAR HEATED1 |
50A | RLY. 7 (Rear Heated1 Relay) |
| TRAILER2 | 15A | Trailer Connector |
| AMS | 10A | Battery Sensor |
| E-SHIFTER2 | 10A | With SBW] SCU, Electronic ATM Shift Lever [D4HE & M/T] Clutch & Ignition Lock Switch |
| TRAILER3 | 15A | Trailer Connector |
| B+2 | 50A | ICU Junction Block (IPS5/IPS6/IPS7/IPS8/IPS9) |
| B+5 | 60A | Engine Control Relay, ICU Junction Block (F1/F3/F4/F8/F15/F16) |
| ABS1 | 60A | [With EPB] ESP Control Module |
| REAR BLOWER |
40A | RLY. 13 (Rear Blower Relay) |
| W/S HEATED GLASS RH |
60A | RLY. 4 (Windshield Heated Glass RH Relay) |
| ABS3 | 40A | ESP Control Module |
| POWER OUTLET1 |
40A | PCB Block (Power Outlet Relay) |
| PSD1 | 40A | Power Sliding Door Module |
| PSD2 | 40A | Power Sliding Door Module |
| RR HTD | 15A | RLY. 9 (Rear Defogger Relay) |
| FUEL PUMP1 | 20A | RLY. 5 (Fuel Pump Relay) |
| INVERTER | 40A | AC Inverter Module |
| HEATED MIRROR |
10A | Driver/Passenger Power Outside Mirror |
| A/C1 | 10A | [Auto A/C] Front A/C Control Module |
| A/C2 | 10A | Rear A/C Control Module |
| REAR HEATED2 |
30A | Rear Defogger LH |
| REAR HEATED3 |
30A | Rear Defogger RH |
| DCU2 | 20A | [D4HE] Dosing Control Module |
| DCU3 | 20A | [D4HE] Dosing Control Module |
| DCU4 | 20A | [D4HE] Dosing Control Module |
| WIPER FRT1 | 30A | Wiper Power Relay |
| WIPER FRT2 | 10A | IBU, ECM |
| TCU1 | 20A | TCM |
| ECU2 | 15A | ECM |
| ECU1 | 20A | [D4HE] Fuel Metering Valve, [G6DU] ECM |
| SENSOR4 | 15A | [D4HE] NOX Sensor (Front/MID/Rear), PM Sensor |
| TCU2 | 15A | [D4HE] TCM |
| A/C3 | 10A | E/R Junction Block (RLY. 12) |
| SENSOR6 | 15A | [D4HE] Electronic VGT Actuator, PTC Breather, Oil Sensor, EGR Cooling Bypass Solenoid Valve, Crankshaft Position Sensor E/R Junction Block (RLY. 4 (PTC Heater1 Relay))[G6DU] Injector #1/#2/#3/#4/#5/#6 |
| SENSOR1 | 15A | [D4HE] Fuel Metering Valve, [G6DU] ECM |
| SENSOR5 | 10A | [D4HE] Glow Control Unit |
| POWER OUTLET2 |
20A | Front Power Outlet |
| HORN | 20A | Horn Relay |
| B/ALARM | 20A | Burglar Alarm Horn Relay |
| SENSOR2 | 10A | E/R Junction Block (RLY. 12 (A/C Relay))[D4HE] Lambda Sensor #1/#2, Oil Sensor, Stop Light Switch, Cooling Fan Motor[G6DU] Oil Control Valve #1/#2/#3/4 (Intake/exhaust), Oxygen Sensor #1/#2/#3/#4, Variable Intake Solenoid Valve, Variable Oil Pump Solenoid, Purge Control Solenoid Valve |
| FUEL PUMP2 | 10A | E/R Junction Block (RLY. 5) [D4HE] E/R Junction Block (RLY.11) |
| ECU3 | 10A | ECM |
| ABS4 | 10A | ESP Control Module |
| SENSOR3 | 20A | [D4HE] Rail Pressure Control Valve [G6DU] Ignition Coil #1/#3/#5 |
| CRUISE | 10A | Front Radar |
| GLOW | 80A | Glow Control Unit |
| PTC HEATER1 | 50A | RLY. 4 (PTC Heater1 Relay) |
| PTC HEATER2 |
50A | RLY. 6 (PTC Heater2 Relay) |
| FUEL HEATER |
30A | E/R Junction Block (RLY. 11) |
| 4WD | 20A | AWD ECU |
| Battery Fuse Panel (Smartstream G3.5) | ||
| DSL | 150A | DSL |
| ALT | 250A | ALT |
| Battery Fuse Panel (Diesel) 2.2 VGT) | ||
| ALT | 250A | ALT |
