Ford Focus Electric 2016 Fuse Box Info

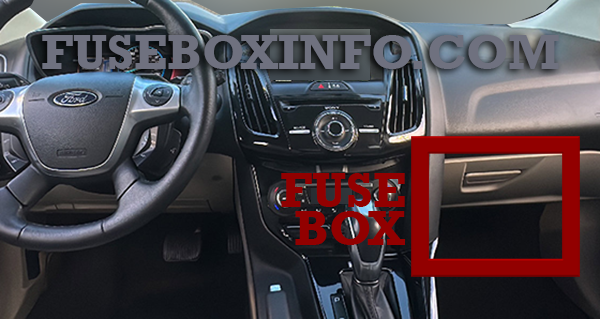

Passenger compartment fuse box location:
The fuse box is located on the right side below the glove box.
Engine compartment fuse box location:

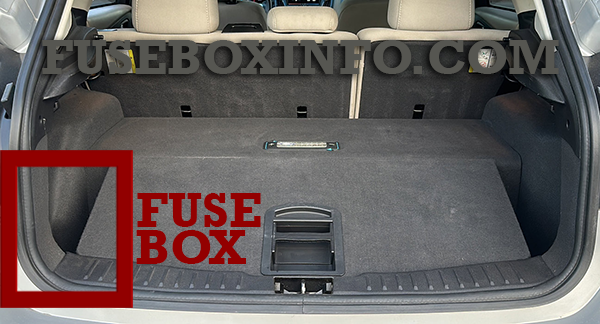

Luggage compartment fuse box location:
The fuse box is located in the luggage compartment behind the left side wheel well.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 56 | - | Not used |
| 57 | - | Not used |
| 58 | - | Not used |
| 59 | - | Not used |
| 60 | 10A | Interior light, Driver door switch pack, Glove compartment lamp, Ambient lighting lamp |
| 61 | 20A | Front cigar lighter socket, Rear auxiliary power points |
| 62 | - | Not used |
| 63 | - | Not used |
| 64 | - | Not used |
| 65 | 10A | Luggage compartment lid release |
| 66 | - | Not used |
| 67 | 7.5A | Global positioning sensor, SYNC |
| 68 | - | Not used |
| 69 | 5A | Instrument panel cluster |
| 70 | - | Not used |
| 71 | 7.5A | Air conditioning |
| 72 | 7.5A | Steering wheel control module |
| 73 | 7.5A | Smart data link module |
| 74 | 15A | High beam headlamp |
| 75 | - | Not used |
| 76 | 10A | Reversing lamp |
| 77 | 20A | Washer pump |
| 78 | 5A | Push button ignition switch, Keyless vehicle module (supply) |
| 79 | 15A | Audio unit, Hazard flasher switch |
| 80 | - | Not used |
| 81 | 5A | Radio frequency receiver |
| 82 | 20A | Ground fuse (front washer pump relay supply), Ground fuse (rear washer pump relay supply) |
| 83 | 20A | Ground fuse (central lock supply), Ground fuse (central unlock supply) |
| 84 | 20A | Ground fuse (driver door unlock relay supply), Ground fuse (central/double lock relay supply), Ground fuse ( release relay supply) |
| 85 | 7.5A | Heated seats switch |
| 86 | 10A | Restraint system, Passenger airbag deactivation system, Occupant weight sensor |
| 87 | - | Not used |
| 88 | - | Not used |
| 89 | - | Not used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| F7 | 40A | Anti-lock brake system, Stability control (KL30V) |
| F8 | 30A | Anti-lock brake system, Stability control (KL30P) |
| F9 | - | Not used |
| F10 | 40A | Blower motor module |
| F11 | 40A | Brake vacuum pump |
| F12 | 40A | Electric motor control relay |
| F13 | 40A | Battery charging control module |
| F14 | 40A | Coolant heater one |
| F15 | 30A | Body control module (KL30C supply) |
| F16 | 40A | Coolant heater two |
| F17 | - | Not used |
| F18 | 20A | Windshield wiper |
| F19 | 5A | Anti-lock brake system, Stability control (KL15) |
| F20 | 15A | Horn |
| F21 | 5A | Stop lamp switch |
| F22 | 15A | Battery monitoring sensor |
| F23 | 5A | Relay coils |
| F24 | 5A | Lighting control switch module |
| F25 | - | Not used |
| F26 | 10A | Powertrain control module |
| F27 | 15A | Charge port light ring |
| F28 | 5A | Vacuum pump monitor |
| F29 | - | Not used |
| F30 | 5A | Transmission control module (12V supply) |
| F31 | 10A | Smart data link/on-board diagnostic connector |
| F32 | 10A | Coolant valve, Air conditioning solenoid, Chiller solenoid |
| F33 | 10A | Powertrain control module/A/C compressor PSR feedback |
| F34 | 15A | High voltage battery |
| F35 | - | Not used |
| F36 | 20A | Coolant pump |
| F37 | 5A | Vehicle audible signal for pedestrians |
| F38 | 15A | Powertrain control module (KL15 supply) |
| F39 | 15A | Heated driver's seat |
| F40 | 5A | Electronic power assist steering |
| F41 | 20A | Body control module (KL15 supply) |
| F42 | 15A | Rear wiper motor |
| F43 | 15A | Daytime running light |
| F44 | - | Not used |
| F45 | 15A | Heated passenger seat |
| F46 | - | Not used |
| F47 | - | Not used |
| F48 | 5A | Mechanical relay coil |
| R1 | - | Not used |
| R2 | - | Horn |
| R3 | - | Not used |
| R4 | - | High voltage battery, Engine control module (contactor sense) |
| R5 | - | Not used |
| R6 | - | Not used |
| R7 | - | Coolant heater element three |
| R8 | - | Coolant heater element one and two |
| R9 | - | Not used |
| R10 | - | Brake vacuum pump |
| R11 | - | Not used |
| R12 | - | Electronic fan control module |
| R13 | - | Blower motor |
| R14 | - | Electric motor control |
| R15 | - | Brake vacuum pump mechanical relay |
| R16 | - | Ignition |
Engine compartment pre-fuse box (Pre-fuse box is located in the electric motor compartment on the front of the 12 volt battery box):
| Fuse/Relay N° | Rating | Functions |
| F1 | 80A | Electronic power assist steering |
| F2 | 150A | DC/DC converter |
| F3 | 100A | Power distribution box |
| F4 | 50A | Body control module (KL30A supply) |
| F5 | 70A | High voltage battery coolant element one and two |
| F6 | 70A | Load compartment fuse box |
| F7 | - | Not used |
| F8 | 50A | Electric fan control module |
| F9 | 50A | Body control module (KL30B supply) |
| F10 | 40A | High voltage battery coolant element three |
Luggage compartment fuse box::
| Fuse/Relay N° | Rating | Functions |
| F1 | 5A | Cellphone passport module |
| F2 | - | Not used |
| F3 | 5A | Keyless vehicle door handles |
| F4 | 25A | Front power window (left), Central locking (front left), Heated exterior mirror (left) |
| F5 | 25A | Front power window (right), Central locking (front right), Heated exterior mirror (right) |
| F6 | 25A | Rear left door module (KL30 supply) |
| F7 | 25A | Rear right door module (KL30 supply) |
| F8 | 5A | Ignition relay |
| F9 | 25A | Driver power seat |
| F10 | 25A | Heated rear window |
| F11 | 5A | High voltage battery (12V B+) |
| F12 | - | Not used |
| F13 | - | Not used |
| F14 | - | Not used |
| F15 | - | Not used |
| F16 | - | Not used |
| F17 | - | Not used |
| F18 | - | Not used |
| F19 | - | Not used |
| F20 | - | Not used |
| F21 | - | Not used |
| F22 | - | Not used |
| F23 | - | Not used |
| F24 | - | Not used |
| F25 | - | Not used |
| F26 | - | Not used |
| F27 | - | Not used |
| F28 | - | Not used |
| F29 | 5A | Rear view camera |
| F30 | 5A | Parking aid module |
| F31 | - | Not used |
| F32 | - | Not used |
| F33 | - | Not used |
| F34 | - | Not used |
| F35 | - | Not used |
| F36 | - | Not used |
| F37 | - | Not used |
| F38 | - | Not used |
| F39 | - | Not used |
| F40 | - | Not used |
| F41 | - | Not used |
| F42 | - | Not used |
| F43 | - | Not used |
| F44 | - | Not used |
| F45 | - | Not used |
| F46 | - | Not used |
| R1 | - | Rear KL15E |
| R2 | - | Heated rear window |
| R3 | - | Rear window wiper |
| R4 | - | Not used |
| R5 | - | Not used |
| R6 | - | Not used |
