Alfa Romeo MiTo 2009 Fuse Box Info
Passenger compartment fuse box location:

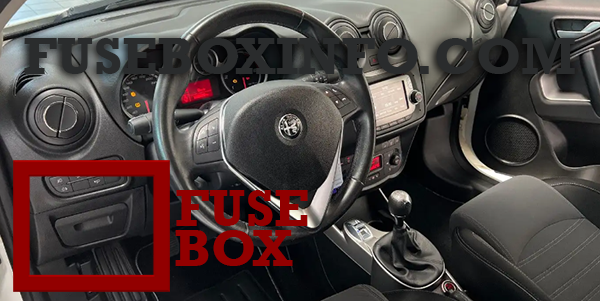

The fuse box is located on the driver's side under the instrument panel.
Engine compartment fuse box location:
Luggage compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 12 |
7.5A 15A |
Right hand dipped beam headlight Headlight gas discharge system (right side) |
| 13 |
7.5A 15A |
Left hand dipped beam headlight Headlight gas discharge system (left side) |
| 32 | 5A | Front courtesy light, luggage compartment light, Sun visor courtesy light, Door lights, Glove compartment light |
| 50 | 7.5A | Air Bag system control unit |
| 53 | 5A | Instrument panel |
| 51 | 5A | Clutch switch, Brake light switch, relay coils on engine fuse box, Control system on internal heater/air conditioning unit, Blue&MeTM control unit, Radio wiring, Air flow meter, Water in diesel fuel sensor |
| 38 | 15A | Door lock motor on door, Safe Lock motor on doors, Tailgate unlocking motor |
| 37 | 5A | Instrument panel, Brake light switch, Gas discharge headlights management system |
| 36 | 10A | Radio, Blue&MeTM control unit, Climate control unit, Alarm control unit, Volume sensing system control unit, EOBD external diagnostic socket, Tyre pressure detection control unit |
| 49 | 5A | Parking sensors control unit, Tyre pressuredetection control unit, Rain/dusk sensor on rear-view mirror, Electro-chrome sensor on rear-view mirror, Seat belts fastened warning light display on rear-view mirror, Control panel illumination (Central control panel, Driver-side control panel, Steering wheel control panel, Blue&MeTM control panel), Front seat heating pad activation switch, Alarm system volume-sensing sensors control unit, Electric sunroof control unit, PND socket on dashboard |
| 43 | 20A | Windscreen / rearscreen washer pump |
| 31 | 5A | INT/A key exhaust relay coils on engine fuse box |
| 48 | 20A | Electric window motor complete with control unit (passenger-side door) |
| 47 | 20A | Electric window motor complete with control unit (driver-side door) |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 19 | 7.5A | Air conditioning compressor |
| 14 | 15A | Main beams |
| 10 | 15A | Two-tone horn |
| 15 | 30A | Additional heater (PTC 1) |
| 18 | 5A | Control system relay coil, Engine management control unit (1.4 versions), Engine cooling system remote control switch coil (300W+300W) |
| 23 | 20A | Braking system control unit (control unit and solenoid unit) |
| 30 | 15A | Fog lights |
| 21 | 15A | Fuel pump on tank |
| 09 | 20A | Headlight washer pump |
| 84 | 10A | Suspension control unit |
| 20 | 30A | Heated rear windscreen, demisting system |
| 16 | 5A | Engine management control unit |
| 24 | 5A | Electric steering control unit (power supply + Key), Brake system control unit (power supply + Key), Yaw sensor on tunnel |
| 87 | 7.5A | Passenger/driver-side door mirror demister, Demister on front jets, Heated windscreen relay coil |
| 11 | 10A | Waste gate solenoid, Shut off solenoid, Canister solenoid, Lambda Sensor Heater, VGT solenoid, EGR cooling bypass solenoid, Swirl solenoid, Throttle solenoid, Glow plug preheating control unit |
| 17 | 10A | Engine management control unit (power supply) |
| 22 |
10A 20A |
Engine management system main loads (1.4 versions) Engine management system main loads (1.6 JTDM versions) |
| 08 | 30A | Heated windscreen |
| 83 | 40A | Passenger compartment fan |
| 85 | 15A | Power socket on tunne |
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 3 | 15A | Luggage compartment power socket |
| 2 | - | Fuse wiring |
| 1 | 20A | Electric sunroof opening system |
| 6 | 15A | Left and right front seat heater |
| 5 | 10A | Bassbox subwoofer in spare wheel compartment |
| 4 | 15A | Bose HI-FI system amplifier control unit |
