MG RX5 2023 Fuse Box Info

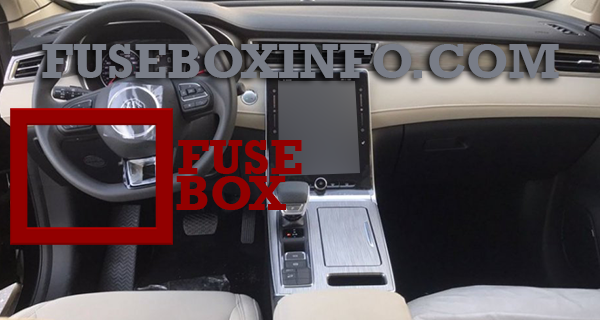

Passenger compartment fuse box location:
The fuse box is located under the left dashboard panel cover.

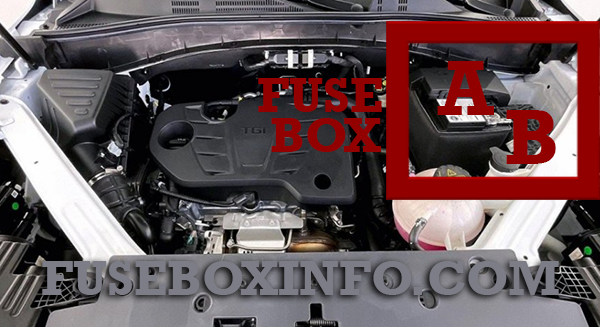

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | - | - |
| 3 | 30A | Front Passenger Window Regulator Switch |
| 4 | 10A | Gateway |
| 5 | 5A | Tyre Pressure Monitoring System, PRND Gear Display, PEPS Backup Immobilizer Coil, EPB Switch |
| 6 | 10A | Airbag Control Module |
| 7 | - | - |
| 8 | 10A | Electronic Steering Column Lock |
| 9 | 5A | Backup Immobilizer Coil, PEPS |
| 10 | 5A | E-Call TBOX |
| 11 | 10A | Driver Door Switch Pack |
| 12 | 10A | Gateway |
| 13 | 5A | Electronic Shift Control Unit |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | 10A | Diagnostic Line Connector |
| 18 | 10A | Wireless Charger, Rear USB Charging Module (AT) |
| 19 | 5A | Rear USB Charging Module (MT) |
| 20 | 15A | Front Console Power Socket |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | 5A | Instrument Pack |
| 26 | 10A | A/C Control Module |
| 27 | 20A | Entertainment System, DAB |
| 28 | - | - |
| 29 | - | - |
| 30 | - | - |
| 31 | - | - |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
Engine compartment fuse box A (Battery fuse box):
| Fuse/Relay N° | Rating | Functions |
| F1 | 350A | Generator, Starter Motor |
| F7 | - | - |
| FL2 | - | - |
| FL3 | 60A | Electric Power Steering System |
| FL4 | 200A | Front Compartment Fuse Box |
| FL5 | 50A | Passenger Compartment Fuse Box |
Engine compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| F1 | - | - |
| F2 | 10A | Left Daytime Running Lamp |
| F3 | 10A | Right Daytime Running Lamp |
| F4 | - | - |
| F5 | 20A | Windscreen Washer Relay |
| F6 | 20A | Rear Wiper Relay |
| F7 | 30A | Rear Left Window Regulator Switch |
| F8 | 25A | Body Control Module |
| F9 | 25A | Body Control Module |
| F10 | 20A | Front Passenger Seat Adjustment Switch |
| F11 | 30A | Rear Right Window Regulator Switch |
| F12 | 20A | Driver Seat Adjustment Switch |
| F13 | 20A | Sunroof Motor |
| F14 | 15A | Fuel Pump Relay |
| F15 | 10A | A/C Compressor Clutch |
| F16 | - | - |
| F17 | 20A | Sunshade Motor |
| F18 | 10A | Engine Control Module |
| F19 | - | - |
| F20 | 20A | Windscreen Washer Pump |
| F21 | 15A | Horn |
| F22 | - | - |
| F23 | 25A | Transmission Control Module |
| F24 | 30A | Driver Window Regulator Motor |
| F25 | 30A | Rear Window Heating Element |
| F26 | 25A | Front Wiper Speed Control Relay |
| F27 | 25A | Body Control Module |
| F28 | 25A | Body Control Module |
| F29 | 7.5A | Rearview Mirror Heating |
| F30 | - | - |
| F31 | - | - |
| F32 | 5A | Engine Control Module |
| F33 | 25A | Body Control Module |
| F34 | - | - |
| F35 | 30A | Passenger Compartment Fuse Box |
| F36 | 5A | Headlamp Levelling Switch, Headlamp, Interior Rearview Mirror |
| F37 | - | - |
| F38 | - | - |
| F39 | - | - |
| F40 | - | - |
| F41 | - | - |
| F42 | 10A | Transmission Control Module, Engine Control Module, Electronic Shift Control Unit, Reverse Lamp switch, E-Call TBOX, E-Call Switch |
| F43 | 5A | Sensing Diagnostic Module (Airbag) |
| F44 | 10A | Parking Assist Sensor, Body Control Module, Instrument Pack |
| F45 | - | - |
| F46 | 15A | Engine Control Module |
| F47 | 20A | Generator, Air Flow Sensor, Carbon Canister Control Valve, Cooling Fan, Upstream Oxygen Sensor, Downstream Oxygen Sensor |
| F48 | 15A | Ignition Coil |
| F49 | 10A | Variable Valve Timing Valve - Intake, Variable Valve Timing Valve - Exhaust, Electronic Thermostat, Pressure Relief Valve, Brake Signal Sensor, Neutral Switch, Oil Control Valve, Carbon Canister Vent Valve, Electronic Vacuum Pump Relay, Clutch Position Sensor |
| F50 | - | - |
| SB1 | 40A | Stability Control System - Valve |
| SB2 | 40A | Blower, A/C control module |
| SB3 | 30A | Electronic Oil Pump Controller |
| SB4 | 40A | Stability Control System - Pump |
| SB5 | 25A | Body Control Module |
| SB6 | 30A | Power Liftgate Control Module |
| SB7 | - | - |
| SB8 | - | - |
| SB9 | - | - |
| SB10 | 40A | Transmission Control Module Relay |
| SB11 | 30A | Starter Relay |
| SB12 | 30A | Passenger Compartment Fuse Box |
| SB13 | 30A | Electronic Vacuum Pump Relay |
| SB14 | 50A | Cooling fan |
| SB15 | - | - |
