MG MG4 EV 2023 Fuse Box Info

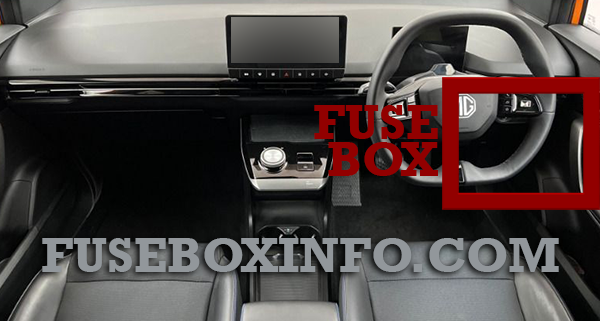

Passenger compartment fuse box location:
The fuse box is located behind the driver side knee trim panel.

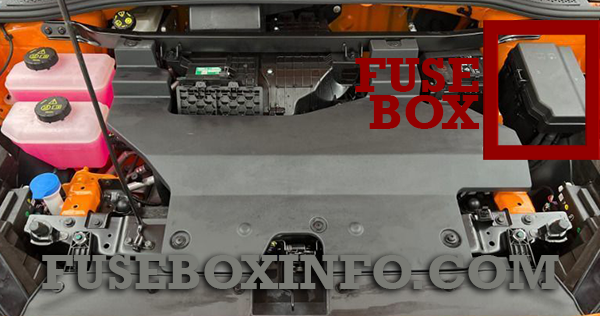

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | - | - |
| 2 | 5A | High Voltage Electric Heater |
| 3 | 7.5A | Gateway |
| 4 | 15A | Heated Steering Wheel |
| 5 | 5A | Driver door combination switch, exterior rearview mirrors and headlamp leveling switch, EPB switch, infortainment control panel, clock spring |
| 6 | 5A | Pedestrian alert module, communication module |
| 7 | 5A | Gear shift control unit, instrument pack |
| 8 | 7.5A | Digital radio, central display, front view camera module |
| 9 | 5A | Charging Port |
| 10 | - | - |
| 11 | 30A | Driver seat control module, driver seat adjustment switch |
| 12 | - | - |
| 13 | 5A | Fatigue Monitoring Module |
| 14 | 10A | Airbag Control Module |
| 15 | 15A | Super Lock |
| 16-17 | - | - |
| 18 | 10A | Electronic Steering Column Lock |
| 19 | - | - |
| 20 | 10A | DLC |
| 21 | - | - |
| 22 | 10A | Automatic Temperature Control |
| 23 | - | - |
| 24 | 20A | Infortainment Mainframe |
| 25 | 5A | Rear Driving Assistance Radar |
| 26-43 | - | - |
| 44 | 15A | Front Console Power Socket |
| 45 | 5A | Rear USB port, wireless charging module of mobile phone |
| 46 | - | - |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Reserved Trailer Module |
| 2-50 | - | - |
| 51 | 15A | Horn Relay |
| 52 | 5A | Electric vehicle communication controller, active intake grille |
| 53 | 20A | Left Headlamp |
| 54 | 30A | Body Control Module |
| 55 | 30A | Body Control Module |
| 56 | 5A | Forward Detection Radar |
| 57 | 5A | Electric Parking Motor Control Unit |
| 58 | 30A | Body Control Module |
| 59 | - | - |
| 60 | 30A | Heated Rear Window |
| 61 | 40A | Integrated Braking System |
| 62 | 30A | Power Window Regulator Motor |
| 63 | 5A | Airbag control module, collision power module, instrument pack, gateway, parking assist sensor, body control module |
| 64 | 30A | Collision Power Modul |
| 65 | - | - |
| 66 | 10A | Electric Exterior Rearview Mirror |
| 67 | - | - |
| 68 | 20A | Electric Parking Motor Control Unit |
| 69 | 30A | Collision Power Module |
| 70 | 5A | Integrated braking system, electric power steering, second axis motor controller, intelligent electronic control unit |
| 71 | - | - |
| 72 | 20A | Right Headlamp |
| 73 | 5A | Battery sensor, brake pedal switch |
| 74-76 | - | - |
| 77 | 15A | PEB Cooling Water Pump |
| 78 | 20A | High Voltage Battery Pack System |
| 79 | 50A | Air Conditioning Inlet Box |
| 80 | 10A | Second axis motor control unit, intelligent electronic control unit |
| 81 | 15A | PEB Cooling Water Pump |
| 82 | - | - |
| 83 | 15A | Battery Pack Coolant Pump |
| 84 | - | - |
| 85 | 15A | Front Wiper Motor |
| 86 | 15A | Heat Pump Controller |
| 87 | 5A | Combined Charging Unit |
| 88 | 5A | Electric air conditioning compressor, battery pack heater |
| 89 | 5A | Interior rearview mirror, exterior rearview mirrors and headlamp leveling switch, left headlamp, right headlamp |
| 90 | - | - |
| 91 | 30A | Body Control Module |
| 92 | 25A | Wiper Relay |
| 93 | 30A | Automatic Window Regulator Motor |
| A | - | - |
| B | - | - |
| C | 80A | Electric Power Steering |
| D | - | - |
| E | 100A | Passenger compartment fuse box |
| F | - | - |
| G | 60A | Cooling Fan Power Supply |
| H | 60A | Integrated Braking System |
