Polaris RZR Pro XP 2024 Fuse Box Info

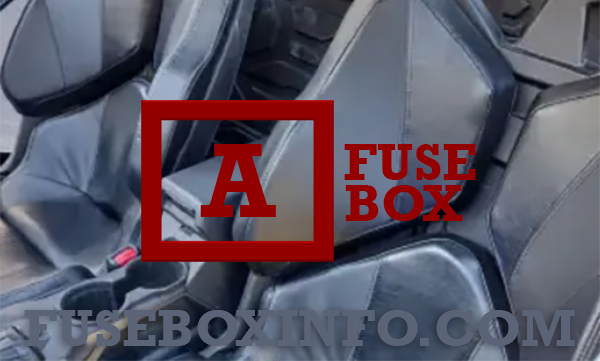

Passenger compartment fuse box location A:
The fuse box A is beneath the armrest and can be accessed by removing the bed of the armrest storage compartment.

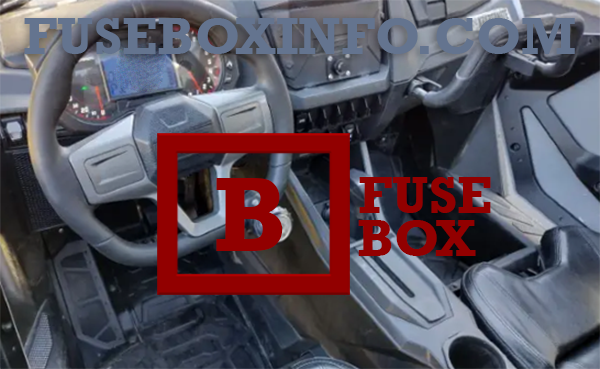

Passenger compartment fuse box location B:
The fuse box B is located under the dash, near the operator’s right knee area.
Fuse Box Diagram | Layout
Passenger compartment fuse box A:
| Fuse/Relay | Rating | Functions |
| PDM1 |
40A 30A (for 2-seat |
Power to Secondary Fuse Center for Lights, Instrumentation, and Accessory Relay |
| PDM2 | 30A | Power to Secondary Fuse Center for Auxiliary Outlets, Chassis, SCM, and Shock Fuse |
| PDM3 | 30A | Power to Secondary Fuse Center for Fuel, LCAC, and EFI Fuse |
| FAN | 30A | Engine Cooling Fan |
| EPS | 30A | Electronic Power Steering |
| SPARE | 30A | Spare fuse |
| VREG 1 | 40A | Voltage Regulator (Driver) |
| VREG 2 | 40A | Voltage Regulator (Passenger) |
| PULSE PWR | 200A | Battery Power to Polaris Pulse and 6AWG Cable |
Passenger compartment fuse box B:
| Fuse/Relay | Rating | Functions |
| LCAC | 7.5A | Water Pump |
| FUEL | 10A | Fuel Pump |
| TERM BLK | 10A | Terminal Block Accessory |
| INST ACCY | 5A | Diagnostic Accessory, Interior LED Light, Display Accessory (optional) |
| PWR PT 1 | 10A | 12V Socket (in front of gear selector) |
| INST UNSW | 7.5A | Display (optional), Gauge, Diagnostic |
| LIGHTS | 7.5A | Headlights, Taillights, Accent Lights (optional), Brake Lights |
| CHASSIS | 7.5A | AWD Switch Light, Oxygen Sensor Heater, EPS Wake-Up, Vehicle Speed Sensor, Seat Belt Switch, SCM Wake-Up (optional), SCM Mode Switch (optional), AWD Coil, Gauge, Waste Gate |
| EFI | 10A | Accessory Relay Coil, ECM Wake-Up, Pump Relay Coil, Chassis Relay Coil, Start Relay Coil, EFI Relay Coil, Injectors, SCM Relay Coil (optional), Lights Relay Coil, Ignition Coil, Starter Solenoid Coil, Brake Relay Coil |
| COIL | 7.5A | Coil on Plug |
| DYNAMIX Models | ||
| SCM | 5A | Shock Control Module |
| SHOCK | 5A | Shock Power |
| AMP* | 30A | Audio Amplifier |
| SUB* | 40A | Audio Subwoofer |
*For vehicles equipped with audio amplifiers and subwoofers, the fuses are located underneath the front storage compartment above the center console.
